0.30 - 2.30mm Automatic CNC Spring Forming Machine For All Types Of Springs

0.30 - 2.30mm CNC20 universal CNC spring forming machine for all types of springs

XD-CNC20 universal spring forming machine

Technical Parameter:

Details:
1. CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types: extruding,punching and molding.

2.CNC20 universal spring machine is equipped with XinDing spring machine controller. The controller system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
3. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can control direction action or designated moves back and forth.

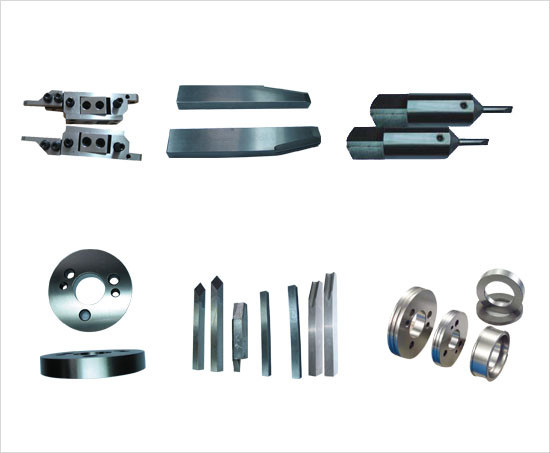

Tooling presentation:

spring making machines

spring making equipment
